Mill Machine

Technical parameters

Parameters/model	BX566	BX568	BX5610	BX5612 BX5612A	BX5615
Diameter of ringmm	600	800	1000	1200	1500
Main motor powerkw	55	90	132	200	315
Capacitykg/h	300-800	500-1000	800-1600	1400-2600	3000-5000
Weightkg	1500	2050	2500	3500	6500
Overall dimensionmm	1775×1500×2150	2120×1867×2035	2582×2200×2315	2700×2520×2785	2930×2830×3410

Refiner

Parameters/model			BM1111/15/15	BM1111/15/15M	BM1111/15/23	BM1112/15/33	BM1114/15/45	BM1115/15/58
Productivity	Suitable for MDF production line (m3/yr)		30000~50000	>50000	80000	100000	150000	200000
	Bone dry fiber	Average daily Capacity (t)	120~150	>150	230	330	450	580
	Bone dry fiber	Average Capacity per hour (t)	≈7	>7	≈10	≈13	≈20	≈26
Main motor power			1120~1400	1600	2240	3000	4000~4500	4500~5600
Segment size			42	42~44	44	45~49	50~54	55~58
Sealing method of refining chamber			Mechanical sealing	Mechanical sealing	Mechanical sealing	Mechanical sealing	Mechanical sealing	Mechanical sealing
Overall weight			≈35000	≈42000	≈45000	≈57000	≈75000	≈80000

Base Board Line

Technical parameters

Capacity	1100000-8500000m2
Base board thickness	8-32mm
Base board size	(1220-2135)X(2440-2750)mm
No. of laminated paper	1-3Pcs
Pressing cycle (minimum)	33 (dwell time 20s)s
Press opening time	≤2.5s
Press closing time	≤1.8s
Feeding precision	≤±0.5mm

Drum Chipper

Parameters/model	BX216		BX218		BX218-1	BX218D	BX218E	BX2110	BX2113	BX2113A		BX2113/11	BX2113/13	BX2116	BX2120
Drum diametermm	650		800		800	800	800	1000	1300	1300		1300	1300	1600	2000
Number of knives (pieces)	2		2		2	2	2×4	2×2	2	3	4	3×2	4×2	4×2	3×2
Feeding opening size	180×500		225×680		225×680	240×750	200×750	330×1050	400×700	400×700		400×1050	400×1250	600×1250	850×1250
Maximum diameter of logsmm	120		160		160	160	160	210	230	230		230	250	310	370
Length of chipsmm	30	22	30	20	30	30	30	30	38	30	25	30	30	30	35
Capacitym³/h	10		15-20		15-20	38	15-18	75	34-64	34	60-70	100	132	185	190
Main motor powerkw	55		110		110	132	132	220	200-250	200-250	250	315	450	710	1000
Weightkg	4070		7000		7500	7300	7300	12500	11800	11800		14500	20540	32000	55000
Overall dimension(L×W×H)	4348 ×1730 ×1258		4670 ×2150 ×1500		4920 ×2500 ×1500	4670 ×2150 ×1500	4670 ×2150 ×1500	4340 ×3550 ×1500	3670 ×2517 ×2050	3670 ×2517 ×2050		3485 ×2860 ×1830	5484 ×2860 ×1830	4360 ×3150 ×2200	7970 ×7150 ×2750

Screen

Technical parameters

Parameters/model	BF1420A	BF1420E	BF14100	BF14120	BF14150
Number of screen layers	3 (layers)	3 (layers)	3 (layers)	3 (layers)	3 (layers)
Mesh size (upper layer) mm	Ф35Ф40Ф45	65×65	65×65	60×60	65×65
Mesh size (middle layer) mm	φ5	φ4	φ4	φ4	φ4
Screen area m2	2.65	8	10	12.5	15
Capacity (bulk) (m3/h)	15	100-130	150-200	250-300	300-350
Motor power (kw)	4	7.5	11	11	15
Overall dimension (L×W×H) mm	2700×1560×1580	5250×2670×1880	5650×3210×2250	6710×3240×2650	6500×3950×2600
Weight kg	1800	3500	3750	6250	7000

Debarker

Parameters/model	100,000 m3/a (BP × 10)	150,000 m3/a (BP × 15)	200,000 m3/a (BP × 20)	300,000 m3/a (BP × 30)	400,000 m3/a (BP × 40)
Chain conveyor (feeding)	BZY416/24	BZY4110/28	BZY4110/28	BZY4110/28	BZY4120/32
Conveying capacity: m³/h	80	115	150	200	300
Feed chute of debarker	FB31	BPX201	BPX201	BPX201	BPX401
Chute Length: mm	6460	5500	5500	5500	5500
Drum debarker	BBP1130/18	BBP1140/15	BBP1140/21	BBP1140/27	BBP1150/27
Capacity (m³/h)	80	115	150	200	300
Chain conveyor (discharge)	BZY416/7	BZY418/7	BZY4110/7	BZY4110/7	BZY4112/13
Conveying capacity: m³/h	70	105	140	185	280
Drum chipper	BX2113/13	BX2113/13	BX2116/13	BX2116/13	BX2120/13
Capacity (m³/h)	132	132	185	185	280

Re-Chipper

Drum re-chipper

Parameters/model	BX326		BX328
Drum diameter (mm)	650		800
Drum speed (rpm)	590	836	650
Number of knives (pieces)	2		2
Capacity (m3/h)	5-30		6-30
Feeding opening (mm)	300×600		892×350
Chips length (mm)	12-35		12-40
Main motor power (kw)	37-45		55
Total weight (kg)	2300		3540
Raw material	Over-sized chips, short wood chips, etc.
Feeding method	Upper feeding

Hammer mill

Model/technical parameters	BX348	BX348A	BX349	BX3410	BX3410/12	BX3413		BX3413/13	BX4812	BX3812/20
Rotor diameter (mm)	850	850	925	960	1000	1350		1300	1200	1200
Rotor speed (rpm)	1050	1050	1150	1480	1160	740		880	1250	1100
Number of hammer (heads)	696	372	3	28	28	696		32	198	342
Capacity (kg/h)	5000	2500	40	2000-3000	5000-10000	80m³/h	50 m³/h		3000	6000-8000
Feeding opening (mm)	2034×600	1213×600	Φ940	300×900	350×1050	1052 ×900	902 ×900	400×1250	1220×430	420×2000
Main motor power (kw)	75	55	45	160	160	132		250	200	250
Total weight (kg)	3425	2446	3500	12000	12000	7023		16000	6000	6300
Overall dimension (mm)	2034×600 ×1230	1784×1370 ×1230	2400×1400 ×1300	3980×2480 ×1900	2850×2799 ×1482	2874×2092 ×1692		3490×3060 ×1840	3246×3246 ×1885	2980×2000 ×1885
Raw materials	Flakers	Flakers	Bark	Logs, branches, veneer waste, wood stick etc.	Waste from furniture factory, urban waste	Cotton stalks		Waste from furniture factory, urban waste	Wood chips	Wood chips
Feeding method	Upper feeding	Upper feeding	Upper feeding	Horizontal forced feeding	Horizontal forced feeding	Upper feeding		Horizontal forced feeding	Upper feeding	Upper feeding

Star Cooler

Main technical parameters:

Number of cooling grids:	80
Maximum size of master board:	2550 × 5600mm

Disc Chipper

Technical parameters/model	BX116A	BX1710	BX6110D	BX1112	BX1112-1
Disc diameter (mm)	630	950	950	1220	1220
Blade quantity (pieces)	3	6	6	4	4
Chips length (mm)	15-25	12-35	12-35	20-35	20-35
Feeding method	Horizontal	Tilt	Tilt	Horizontal	Horizontal
Feeding opening(mm)	130×150	207×190	207×190	400×275	400×275
Capacity (solid volume) (m3/h)	2-3	5.5-8	5.5-8	15-20	15-20
Main motor power (kw)	22	75	75	110	110
Maximum logs diameter (mm)	φ100	φ100	φ100	φ200	φ200
Discharge method	Up	Up	Up	Up	Down
Machine weight kg	827	2080	2406	4585	4256
Overall dimensions (mm)	2340×1200 ×1845	2550×1600 ×1650	3983×2556 ×1940	3000×1570 ×1614	3000×1400×1614
Remarks	Optional diesel engine	Right feeding	Right feeding	Right feeding	Right feeding

Technical parameters/model	BX1212	BX1212A	BX1216	BX1216-1	BX1216-2
Disc diameter (mm)	1220	1220	1600	1600	1600
Blade quantity (pieces)	6	6	6	6	6
Chips length (mm)	20-35	20-35	20-35	20-35	20-35
Feeding method	Tilt	Tilt	Horizontal	Horizontal	Horizontal
Feeding opening(mm)	300×300	300×300	545×383	545×383	545×383
Capacity (solid volume) (m3/h)	15-20	15-20	25-45	25-45	25-45
Main motor power (kw)	90	110	220-250	220	220-250
Maximum logs diameter (mm)	φ160	φ200	φ300	φ300	φ300
Discharge method	Up	Down	Up	Down	Up
Machine weight kg	4256	4585	8732	8433	8732
Overall dimensions (mm)	3000×1400 ×1614	3100×1340× 2093	3756×1855× 2093	3756×1855× 2020	3756×1855× 2093
Remarks	Re-chipping of wood chips	Right feeding	Right feeding	Right feeding	Left feeding

Technical parameters/model	BX1216-3	BX1216-4	BX1220	BX1520/8	BX1225	BX1227
Disc diameter (mm)	1600	1600	2060	2330	2490	2650
Blade quantity (pieces)	6	6	8	8	8	8
Chips length（mm）	20-35	20-35	20-35	20-30	20-35	20-35
Feeding method	Horizontal	Tilt	Horizontal	Horizontal	Horizontal	Horizontal
Feeding opening(mm)	545×383	545×383	584×560	590×590	650×615	584×600
Capacity (solid volume)（m³/h）	25-45	25-45	110	130	160	100-130
Main motor power (kw)	220	220	500	160×4	315×2	2×280
Maximum logs diameter (mm)	φ300	φ300	φ500	φ450	φ450	φ500
Discharge method	Down	Down	Down	Down	Down	Down
Machine weight kg	8732	8732	29140	17000	19000	32450
Overall dimensions (mm)	3756×1855 ×2093	3756×1855 ×2093	6410× 3963× 3025	4400×3485 ×5340	5845×2580 ×3185	5745×4785 ×2845
Remarks	Left feeding	Tilt feeding	Right feeding	Tilt cutter	Vertical cutter	Right feeding

Hot Presses

Main technical parameters

Nominal pressure	12500 KN
Opening	260 mm
Platen size	2750×1680×120 mm
Operation height	1400 mm
Number of daylight	22
Diameter × number of hydraulic cylinder	φ400×4 mm
Pressure of hydraulic system	25 MPa
Heating medium	Thermal oil
Thermal oil temperature	≤180 ℃
Fast closing time	≤10 s
Power installation	About 220 Kw

Rotor Dryers

The main technical parameters：

Rotor diameter	φ2740 mm
Rotor speed	2-8 r/min
The initial moisture content of wood shavings	﹤80%
Final moisture content of shavings	≤3%
Production capacity (dry)	1400～1800 kg/h
Main motor power	22 kW
Preheating fan	5.5 kW
Exhaust fan	11 kW
Heat medium	Heat transfer oil mm
Dimensions	12600X3680X4300 mm
Weight	27000 kg

Three-pass Dryers

Main technical parameters:

Capacity (bone dry)	8500~11000 Kg/h
Initial moisture content of flakers	70～80%
Final moisture content of flakers	≤3%
Heat consumption	600~800×104 kcal/h
Heating medium	Flue gas
Drive motor (frequency control)	30 kW
Drum rotation speed	3-11 r/min
Blower power	355 kW
Rotary discharger for wet flakers	5.5 kW
Rotary discharger for dry flakers	5.5 kW
Rotary discharger for multi-cyclone	2.2 kW

Forming Machines

Main technical parameters:

Number of surface forming station	2
Production capacity (bulk flakers)	2×20 m3/h
Number of core layer forming Station	1
Production capacity (bulk flakers)	50 m3/h
Forming mat width	1340 mm
Forming mat thickness	30～120 mm
Mat structure	Classification
Air consumption	2×5000 m3/h
Power installation	45.41 kW

Knife Ring Flakers

Technical parameters

Parameters/model	BX466	BX468	BX4612	BX4612/5	BX4614/5
Ring diameter (mm)	600	800	1200	1200	1400
Thickness of flakers (mm)	0.4-0.7	0.4-0.7	0.4-0.7	0.3-0.8	0.6-1.2
Main motor power (kw)	75	132	200	250	315
Capacity (kg/h)	700-900	1500-3000	2500-4000	5000-8000	8000-11000
Weight kg	3500	5800	8500	9000	9600
Overall dimension (mm)	2800×2265×2110	3130×2512×2380	3443×2753×2840	3615×2595×3000	4200×3200×2930

Defibrator

Parameters/model			BM1111/15/15	BM1111/15/15M	BM1111/15/23	BM1112/15/33	BM1114/15/45	BM1115/15/58
Capacity	Machine for MDF production line (m3/yr)		30000~50000	>50000	80000	100000	150000	200000
	Bone dry fiber	Average daily capacity (t)	120~150	>150	230	330	450	580
	Bone dry fiber	Average Capacity per hour (t)	≈7	>7	≈10	≈13	≈20	≈26
Main motor power			1120~1400	1600	2240	3000	4000~4500	4500~5600
Specification of segment			42	42~44	44	45~49	50~54	55~58
Sealing of refining housing			Mechanical sealing	Mechanical sealing	Mechanical sealing	Mechanical sealing	Mechanical sealing	Mechanical sealing
Overall weight			≈35000	≈42000	≈45000	≈57000	≈75000	≈80000

Cut-to-Size (CTS) Lines

Main technical parameters:

Capacity	120,000-450,000m³/year
Book height	120-250mm
Cutting accuracy
Diagonal tolerance	≤2mm
Edge straightness	≤1mm
Width and length tolerance	≤1.5mm
Minimum size of finished board	600×600mm

Sanding Lines

Technical parameters

Technical parameters Model	BSG2613M	BSG2613MG	BSG2613MGA	BSG2613MX	BSG2613MXX	BSG2713M	BSG2713MA	BSG2713MG	BSG2713MXX
Number of sanding unit	2	2	2	2	2	4	4	4	4
Maximum sanding width (mm)	1300	1300	1300	1300	1300	1300	1300	1300	1300
Board thickness range (mm)	Mar-50	Mar-50	Mar-50	Mar-50	Mar-50	Mar-50	Mar-50	Mar-50	Mar-50
Sanding precision (reachable)	±0.08	±0.08	±0.08	±0.08	±0.08	±0.08	±0.08	±0.08	±0.08
Feeding speed (reachable)	May-35	May-35	May-35	May-35	May-35	May-35	May-35	May-35	May-35
Size of sanding belt (L × W)	2800×1350	2800×1350	2800×1350	2800×1350	3000×1400	2800×1350	2800×1350	2800×1350	2800×1350
Total motor power (kW)	123.7	163.7	193.7	123.7	123.7	277．2	237.2	381．2	237.2
Main motor power (optional) kW	2×55	2×75	2×90	2×55	2×55	2×75 2×55	4×55	4×90	4×55
Air volume of de-dusting blower	22000	28000	28000	22000	22000	33000	33000	34500	33000
Compressed air pressure (Mpa)	0.6	0．6	0．6	0．6	0．6	O．6	O．6	O．6	O．6
Compressed air consumption (Nm3/h)	~5	~5	~5	~5	~5	~7	~7	~7	~7
mm	2460×3400	2450×3530	2450×3530	2460×3400	2570×3400	3630×3500	3670×3400	3640×3530	3920×3400
Overall dimension (L × W × H) mm	×2950	×2950	×3120	×2950	×2950	×2950	×2950	×3120	×2950
Weight kg	16100	15000	18600	14900	15200	25850

Particle Board Production Lines

Technical parameters

Capacity range	30000-120000	1. m³/a
Board size	4×8, 6×8, 6×9	2. ft
No. of press daylight	12-28	3. 层 Layer
Board thickness range	10-25	4. mm
Board density	600-750	5. kg/m³

MDFHDF presses

Technical parameters

Capacity range	50000~200000	m³/a
Board size	4×16、4×18、6×18	ft
No. of daylight	12-18	Layer
Board thickness	8~25	mm
Board density	600~880	kg/m³

China Foma Group

HELD Technologie GmbH.

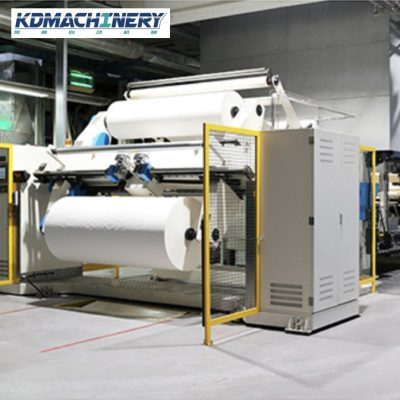

Nantong KD Automatic Machinery
